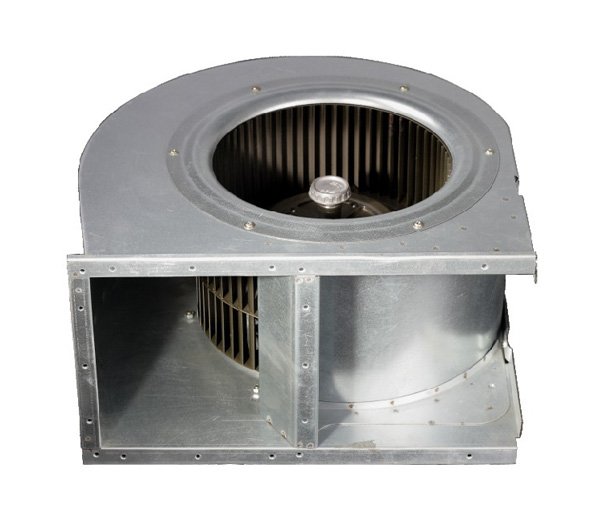

3995S double suction fan
Model：FJ-235*141(SCR-3995S)
Category：Range Hood Fan
Number：
Product introduction
Motor: 80W-4P
Voltage: 220V
rated current: 0.95A
Frequency: 50HZ
fan gross weight: 8Kg
The air ≥ 18 m3/min
Pressure ≥ 265 Pa
Power ≥ 190 W
The noise ≤ 63 dB
Speed ≥ 1200 r/min
A new double wind turbine type ultra quiet air duct design, large capacity centrifugal fan, the Teflon coating process. Compared with other range hood fan, the wind is big, strong suction, low noise, strong ability of anti oil accumulation.

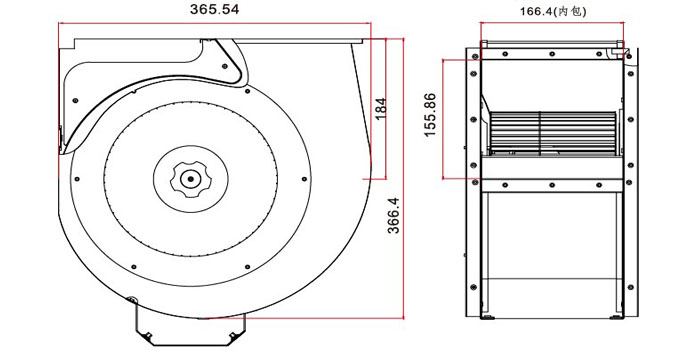

風機結(jié)構(gòu)圖 Fan Chart

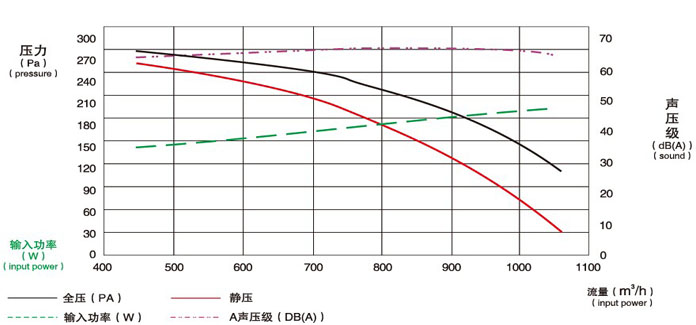

性能曲線 Blower performance graph
風機性能參數(shù)表 Blower performance parmeter table
| 風量 | 全壓 | 靜壓 | 電流 | 輸入功率 | 聲壓級 | 轉(zhuǎn)速 |
| m3/h | Pa | Pa | A | w | dB(A) | r/min |
| 446.4 | 266.8 | 260 | 0.6 | 142.8 | 60.91 | 1235 |
| 562.8 | 264 | 250 | 0.7 | 151.9 | 62.03 | 1190 |
| 659.3 | 241.6 | 228 | 0.7 | 160.1 | 62.39 | 1142 |
| 969.4 | 162.3 | 202 | 0.9 | 188.8 | 62.98 | 885 |
| 1058.9 | 111 | 164 | 0.9 | 195.2 | 61.04 | 762 |
